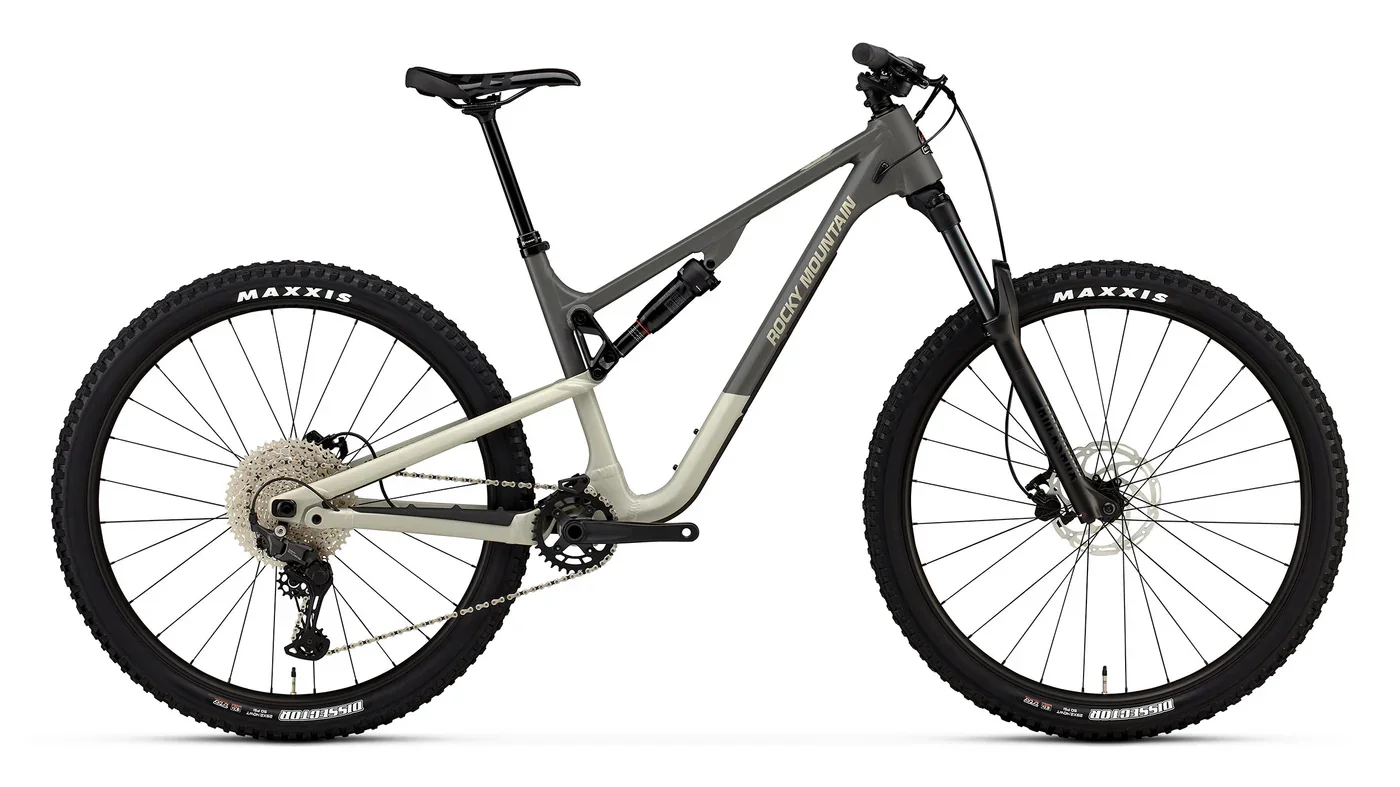

Rocky Mountain Instinct A10

Frame

FORM™ Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | 140mm Travel. FORM™ Alloy Rear Triangle

Fork

RockShox Recon Silver RL 150mm | 42mm Offset

Front Travel

150

Shock

RockShox Deluxe Select | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ

Rear Travel

140

Headset

FSA ZS56|66 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race

Stem

Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40mm

Handlebar

Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp

Grips

Rocky Mountain Lock On Light

Brakes

Tektro HD-M275 | Shimano Pad Compatible

Shifters

Shimano CUES 11spd

Rear Derailleur

Shimano CUES 11spd

Cranks & Chainring

Rocky Mountain Microdrive | 32T | Sram 76mm BCD | 24mm Spindle | Crankarm Length: XS - SM = 165mm | MD - XL = 170mm

Bottom Bracket

Rocky Mountain Sealed BB92 - Shimano Compatible

Cassette

Shimano CUES 11spd 11-50T

Chain

KMC X11-1

Front Hub

Shimano TC500 | 15x110m | 28H

Rear Hub

Shimano TC500 Boost 148mm | 28H

Spokes

2.0 Stainless

Rims

Rocky Mountain TR30 Tubeless | 28H / Tubeless Compatible - Tape / Valves / Sealant Not Incl

Tires

F: Maxxis Dissector 2.4 WT EXO Tubeless Ready // R: Maxxis Dissector 2.4 WT EXO Tubeless Ready //

Seatpost

X Fusion Manic Composite 30.9mm | XS = 125mm | SM = 150mm | MD - LG = 170mm | XL = 200mm

Saddle

WTB Volt 142

Weight

36.4 LBS|16.5 KGS

Notes

We make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification.
